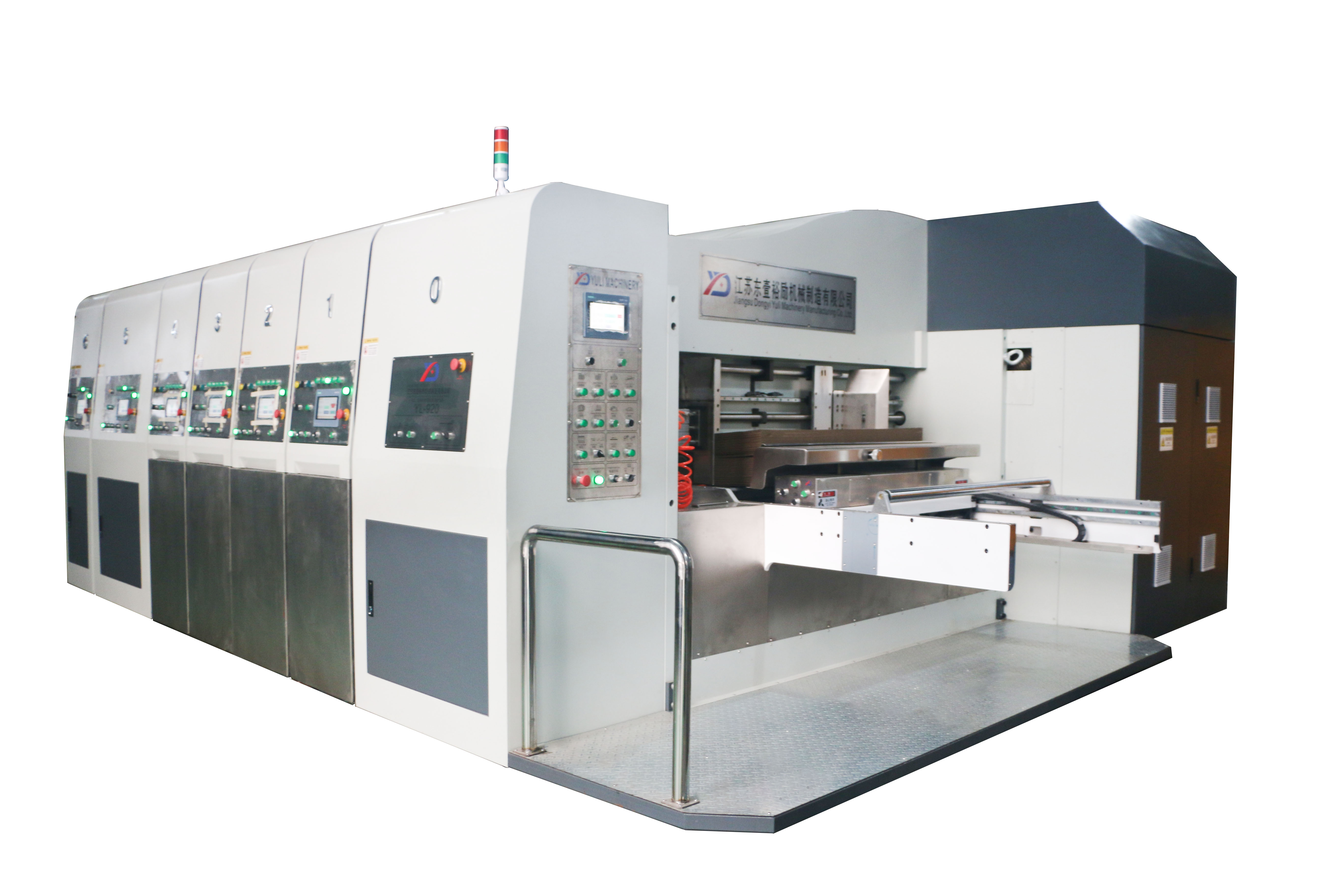

Each unit separately moving,and strong dust removal; Full process vacuum adsorption printing,high-definition; Capable of configuring independent drying devices and scrapers for hot air,infrared,and ultraviolet (UV)radiation to achieve full plate coating and printing of dots; Independent computer touch screen PLC control; Can store commonly used orders; Quick version change function for the entire machine; Quick ink washing and ink saving function; Automatic oil balancing device; Die cutting frequency conversion compensation device; Optional remote maintenance to quickly troubleshoot equip- ment failures.

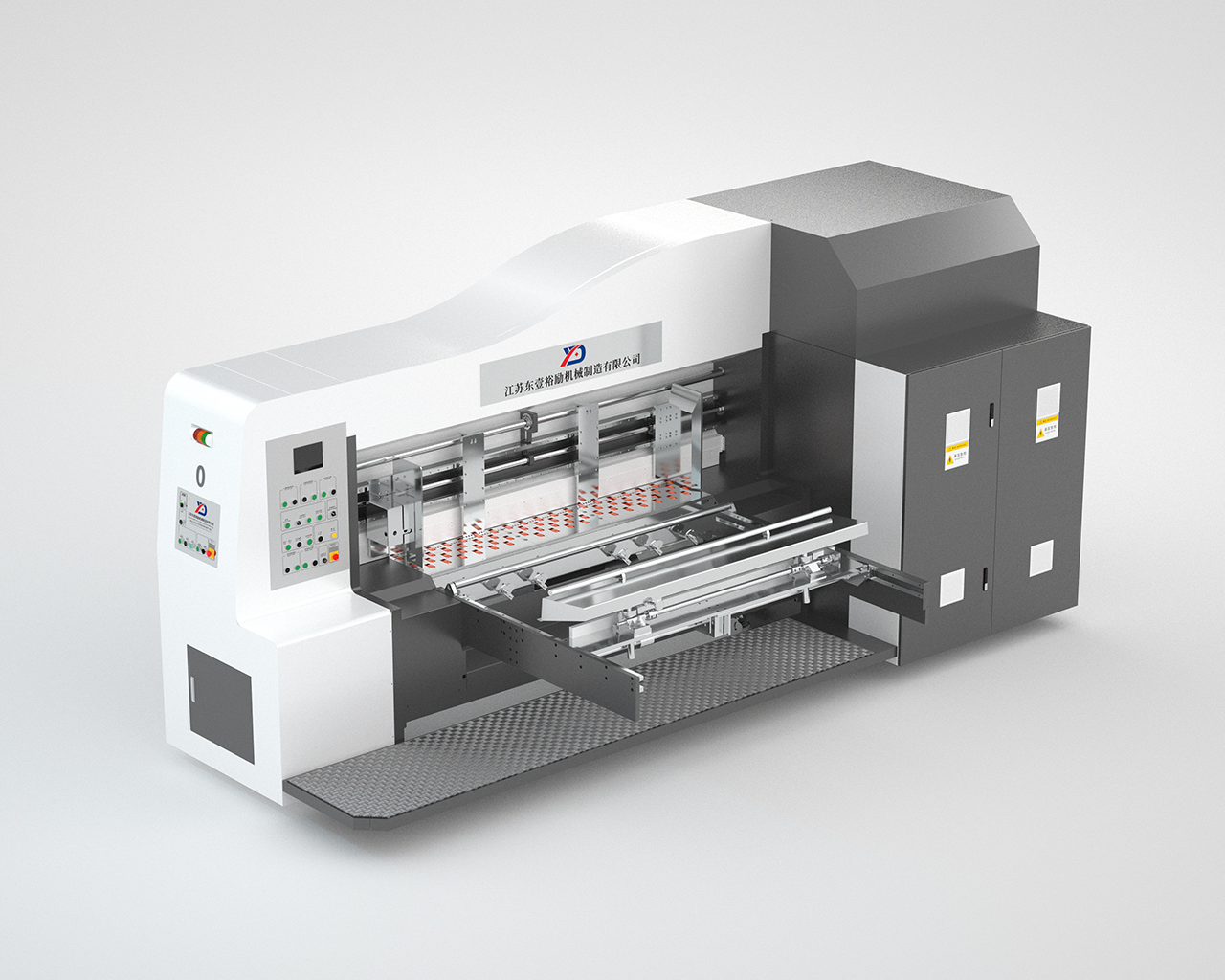

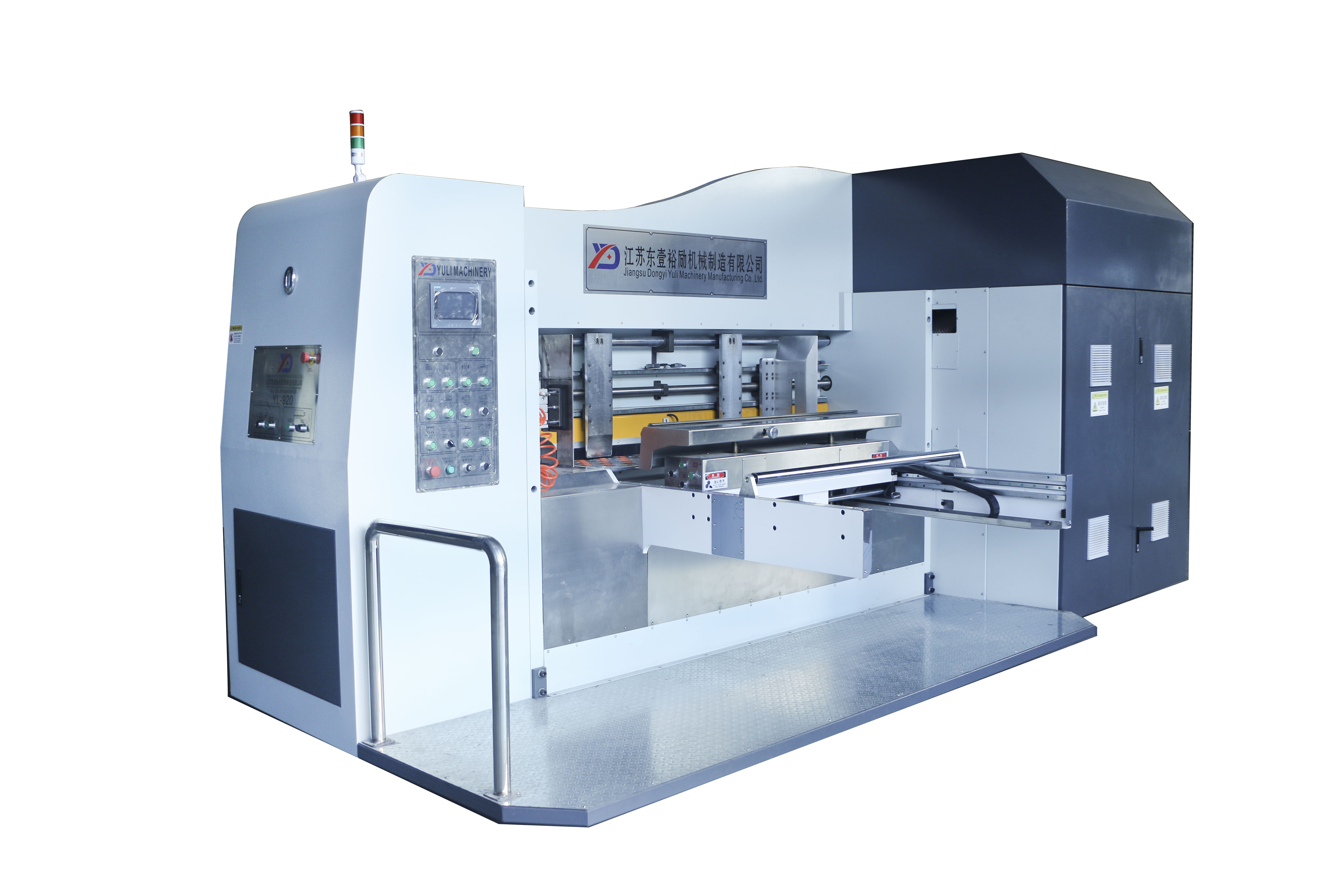

Feeder
Continuous orseparate sheet feeding(with counter) Loading edge feeding increases suction flow,feeding more stable and accurate.Frequency conver- Pull paper cots for the double layer glue,soft inner layer,hand outer layer,not only to maintain the inner layer of elasticity and ensure that the surface wear-resistant,meouce the pressure into the paperboard.
The dedusting device,brush and fan can dean me surface of the paper board.And can be adjusted according to the size of the paper board. Pull paper cots gap,left end right better board position,computer control adjustment.
The back paper holder is electrically controlled before and after,speeding up the setting speed. Host motor start protection device (the machine is not locked,the host can not start operation).

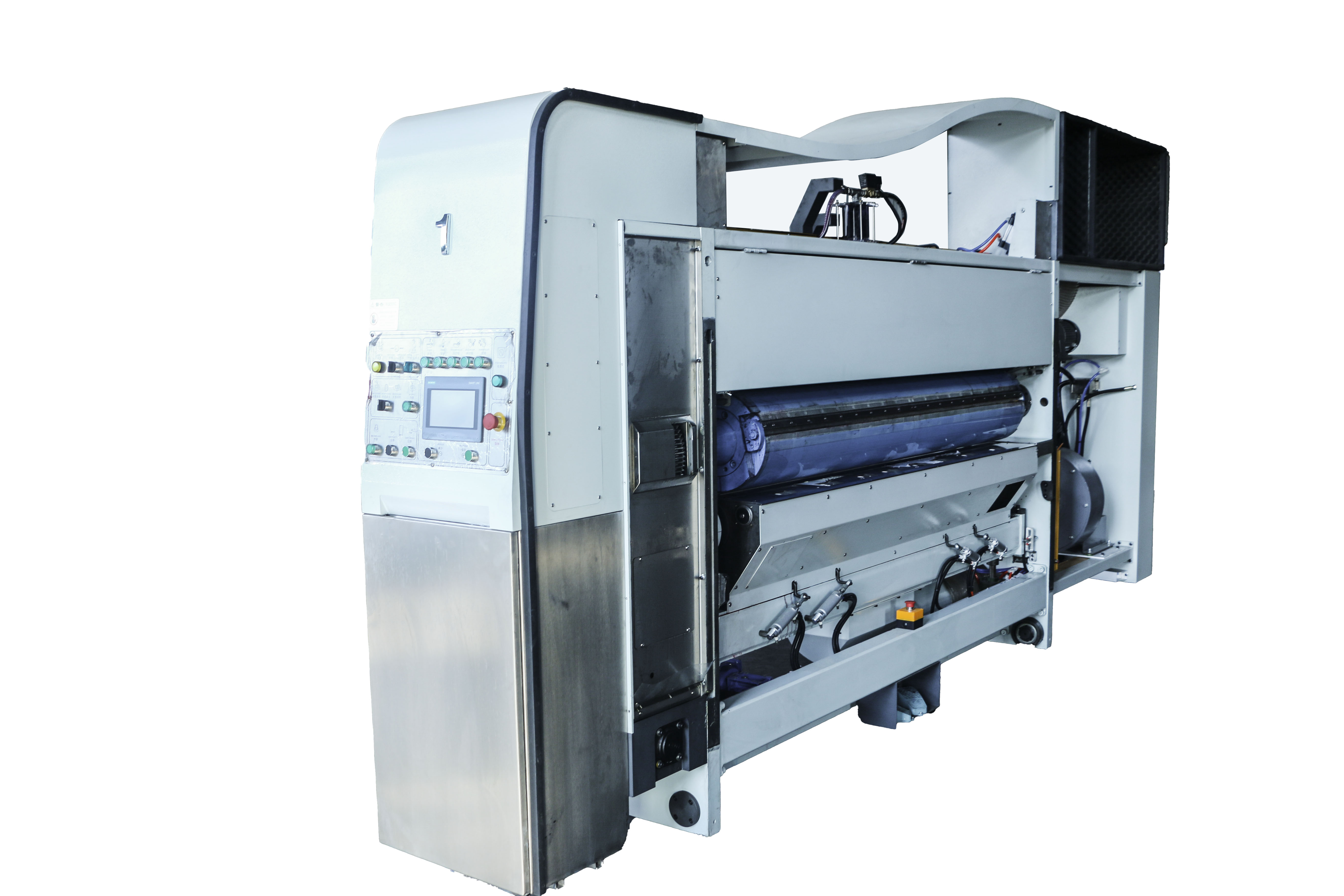

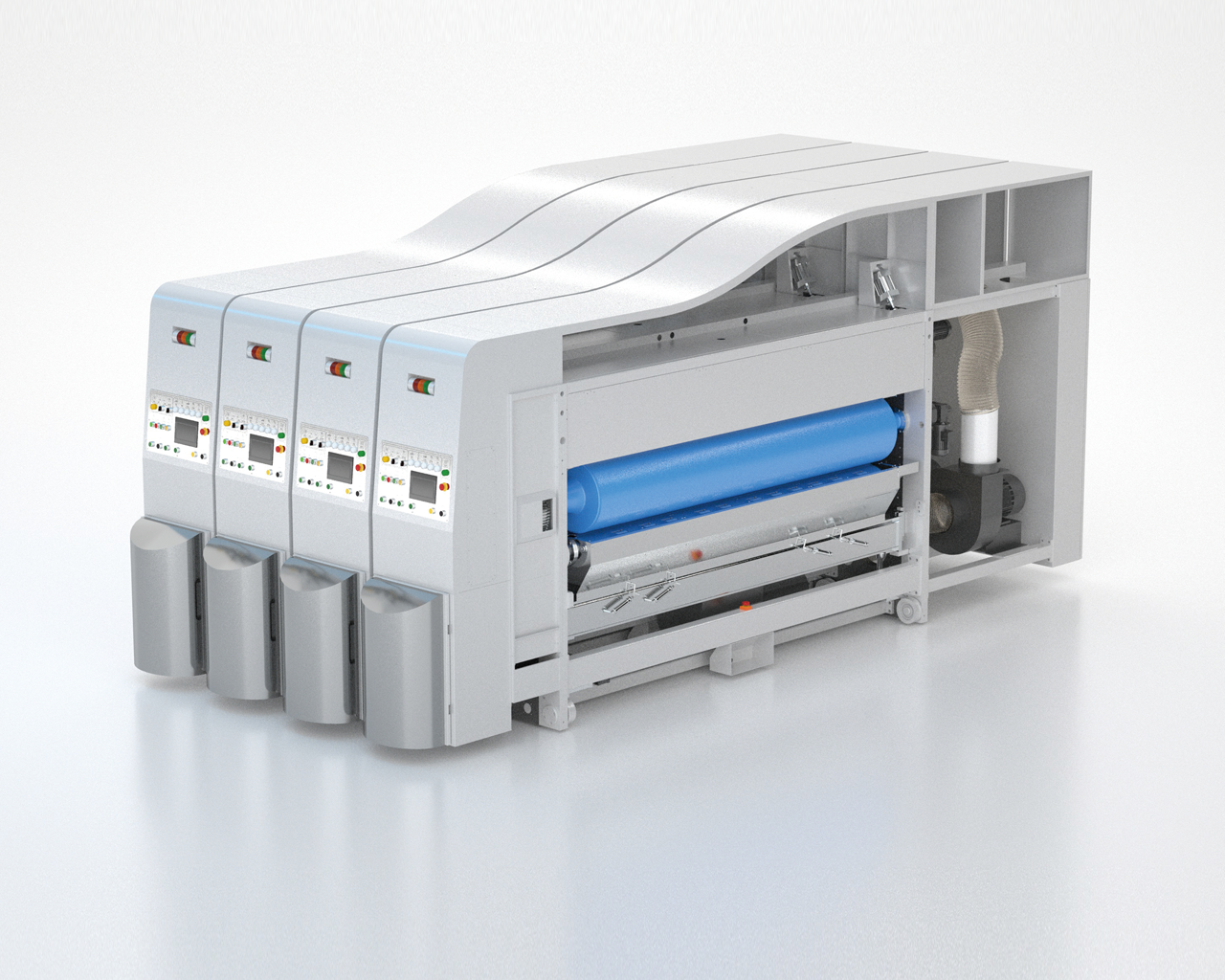

Printer
Scroll hanging plate,left and right side locking device,so that hanging plate alignment more accu- rate.
The roller is equipped with pneumatic dutch,when the unit is involved in the printing,the speed is synchronized with the host machine,when the unit is not involved,he roller can be stopped,thus re- ducing the operation errorand causing damage to the COTS and roller,and separate cleaning,wit- hout the same speed with the host.
COTS and roller with a fixed speed difference,so that cots play a role in scraping ink.
Printing phase,computer and electric digital control.
Horizontal phase,computerand electronic digital control,control range 10MM.
Printed phase fixing device,electronic clutch brake brake mechanism.When the unit is separated from the phase adjustment or cleaning,the brake mechanism restricts the rotation of the gear and maintains the original gear position fixed point Automatic switch cleaning device,so that more complete ink recovery Automatic reset system after cleaning printing plate.
Transfer Roller,imprint Roller,COTS,roller clearance adjustment using self-locking structure Scraper inking system (optional configuration)

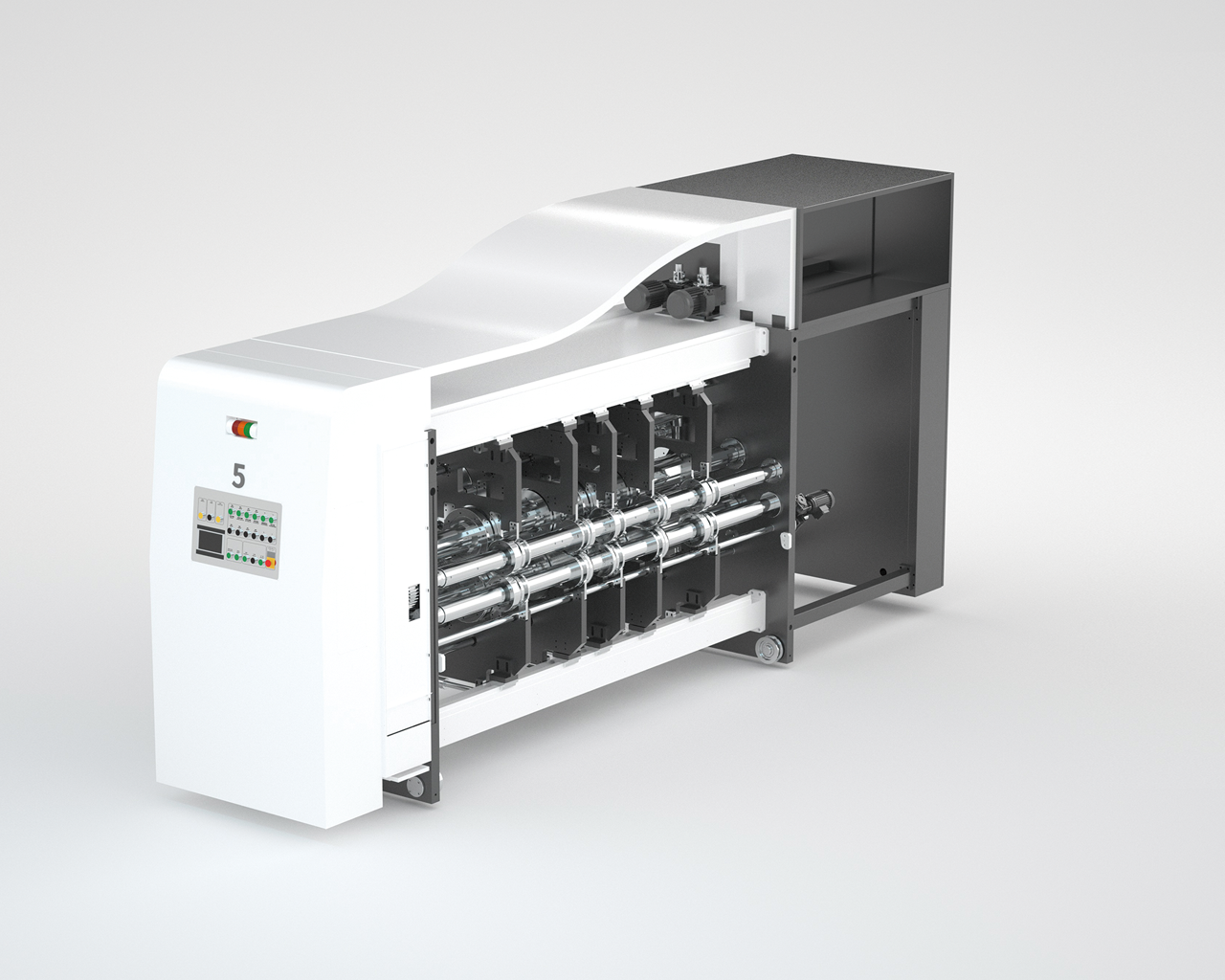

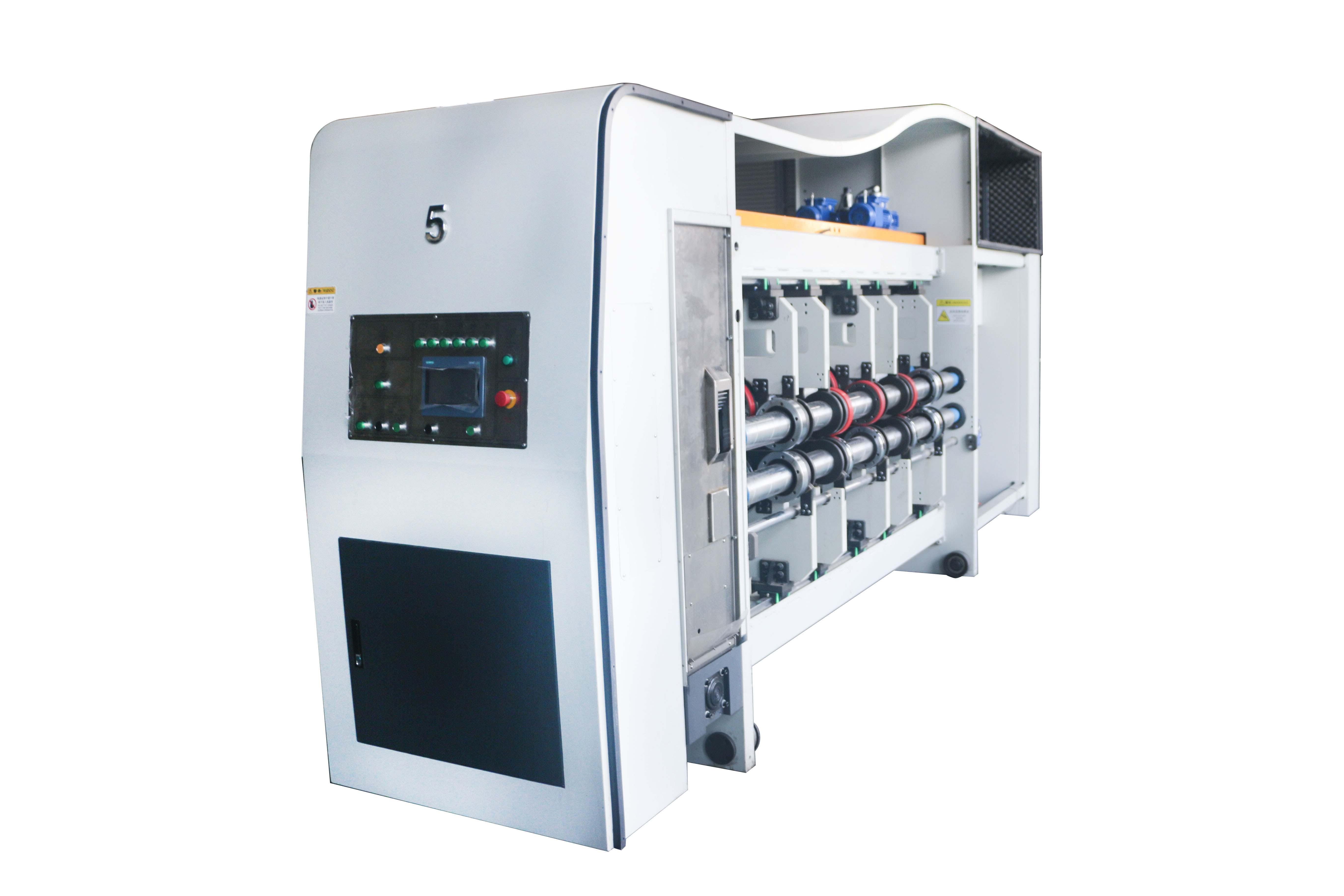

Slotter
Single-axis double-knife slotting,box height adjustment with internal tooth structure,so that lubri- cation is not easy to pollute the carton.
On the surface of the pressure line wheel wrapped u force glue,wit not damage the cardboard.
The upper tool seat and the lower tool seat adopt the transmission shaft linkage,keep the upper and lower tool alignment when moving,extend the tool life.
Slotted phase and height,computer and electric digital control.
Pre-pressing wheel,line pressing wheel,slotting tool seat transversal position,computerand electric digital control
Self--locking structure is adopted to adjust the clearance of slotted cutter base.
Pre-pressure,indentation gap adjustment using self-locking structure.
The slotted cutter boxis high adjusted with anti-collision protection device,which will not damage the machine.

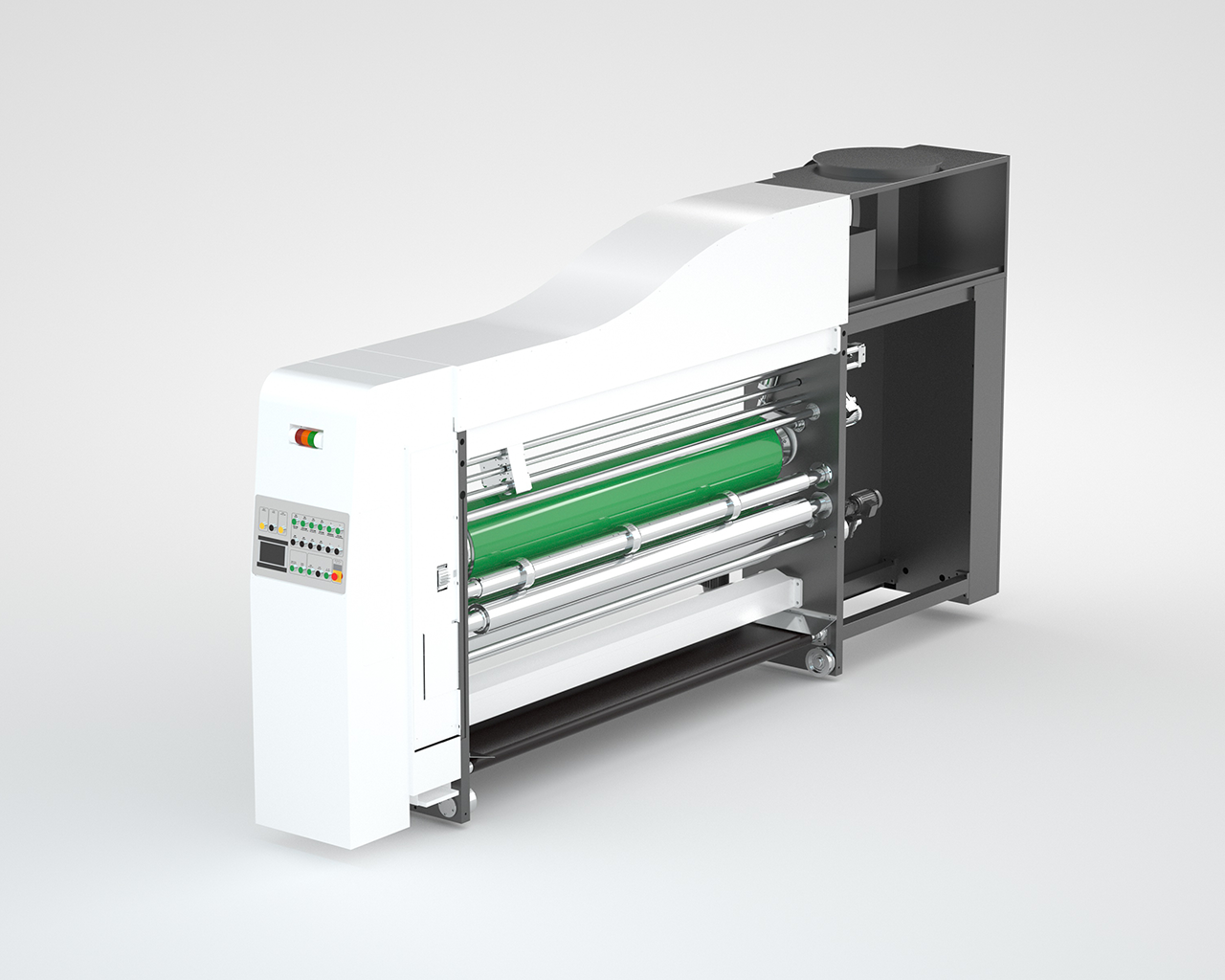

Rotary Diecutter
COTS mechanical spiral reverse 50MM traveling transverse structure Die-cutting phase,computer and electric digital control.
Horizontal phase,computer and electric digital control,control range±10MM.
Computerand electric digital control of the gap between rubber cushion roller and cutter mould roller.
The transfer roller adopts self-locking structure.
The compensation of rubber cushion roller is driven by independent motorto control the speed of rubber cushion roller,The compensation range is 3mm.
The rubber pad roller cuts and trims the structure to keep the rubber pad surface flat.
Intelligent Printing Box Maker Machine-Technical Parameter
Model | YL-0920 | YL-1224 | YL-1628 |
Max.speed(pcs./min) | 350 | 250 | 200 |
Min.Feed Size | 300x600 | 360x600 | 500x760 |
Skip Feed Size | 1100×2010 | 1500×2410 | 2000×2810 |
Slotting TypeR(mm) | 130x130x130x130 | 130x130x130x130 | 130x130x130x130 |
Min.Slot
Slotting TypeL(mm) | 230x60x230x60 | 240x70×240x70 | 240x70x240x70 |
Max.Print Size(mm) | 880x2000 | 1150x2400 | 1550x2800 |
Max.Slot Depth(mm) | 250(Optional Blade) | 300(Optional Blade) | 400 (Optional Blade) |
Print Thickness(mm) | 7.2 | 7.2 | 7.2 |
Print Pricision(mm) | ±0.3 | ±0.3 | ±0.3 |
Slot Pricision(mm) | ±1.0 | ±1.0 | ±1.0 |
Diecutter Pricision(mm) | ±1.0 | ±1.0 | ±1.0 |
Board Thickness(mm) | 2-12 | 2-12 | 2-12 |

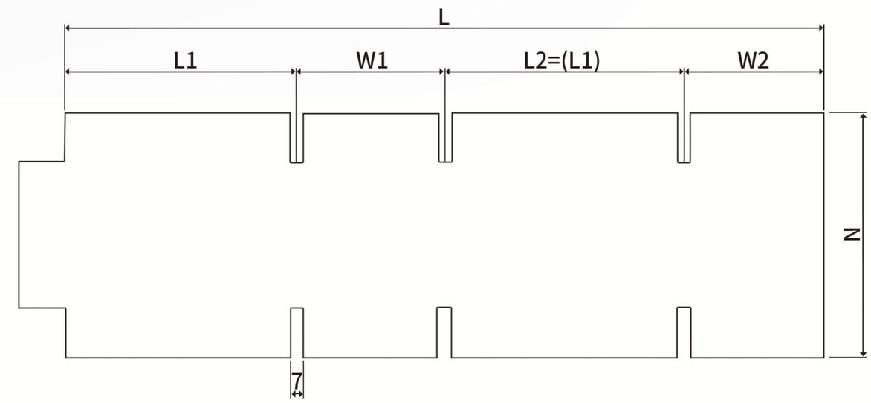

Linkage Lower Gluing Box Machine -Technical Parameter
Model | 1224 |
Max.speed(pes./min) | 300 |
| Max(mm) | Min(mm) |
L | 2600 | 720 |
L1 | 1000 | 155 |
L1+W1 | 1200 | 360 |
N | 1300 | 300 |
