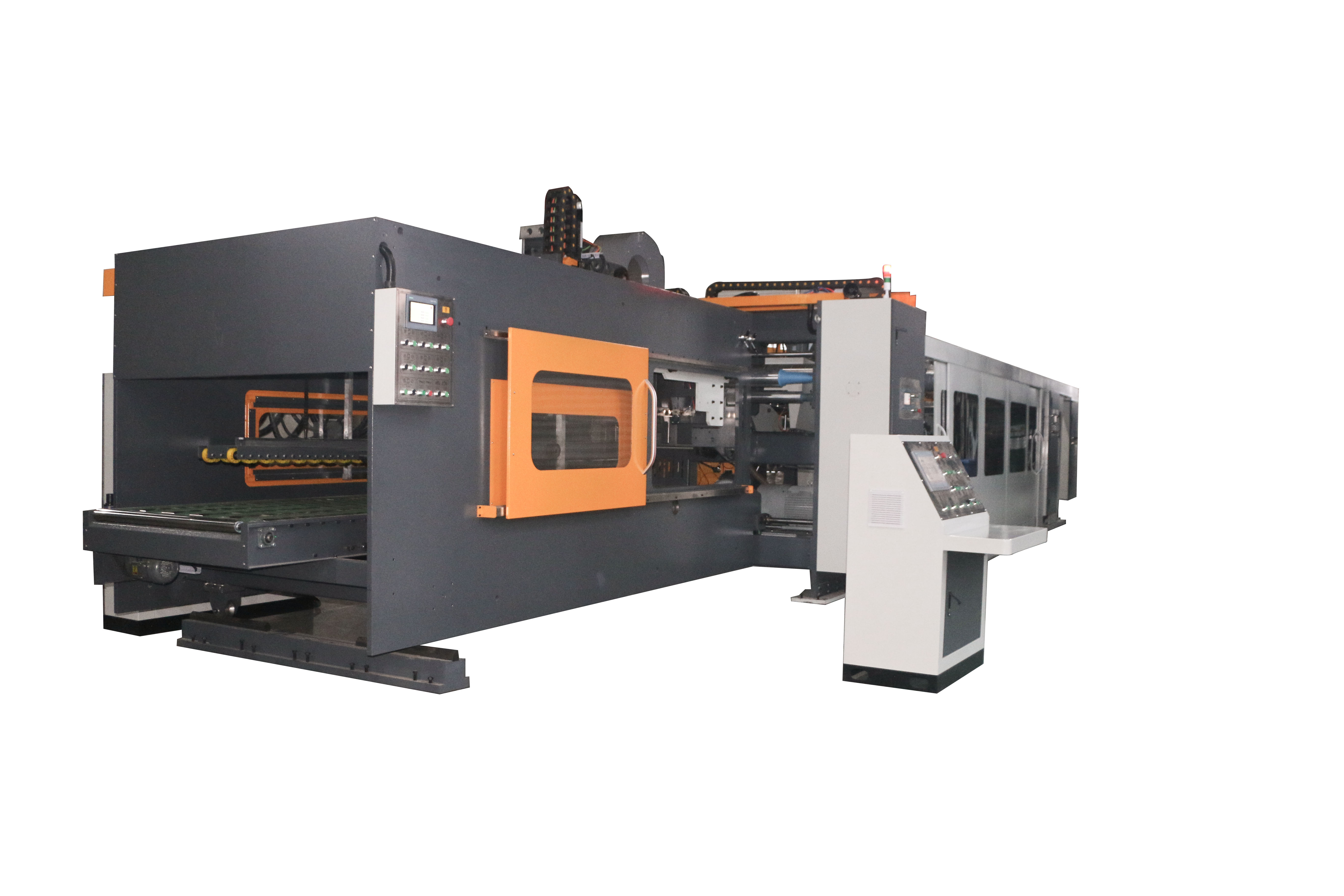

Mobile High-Speed Printing Slotting Die-Cutting Paste Box Packaging Manipulator Linkage Line

Paper Feed Department

· The position of various cartons can be automatically adjusted according to the order.

Two waste removal motors are installed in the paper feed department, which can remove the nail strip paper scraps from the corners and improve the effect of sticking the box.

· Lend the paper receiving arm by 1400mm.

Sticky paste device

· Automatic multi-stage spray system: maintenance is simple, reduce maintenance costs.

· The computer electrically adjusts the spray position.

Folding part

New folding method, servo independent transmission adjustment is faster and more accurate.

Four sets of suction devices make the cardboard go more smoothly.

The overall lengthening of the folding part makes the carton better shaped.

· The rear section forming independent transmission 25 forms a forming wheel.

· Remove and independently adjust the fishtail difference.

Counting and discharging part (right angle correction and counting synchronous type)

· By multiple groups of servo motors to achieve high-speed operation under the precise counting output function, to achieve smooth high-speed operation of the cardboard.

Strong wind pressure device prevents the carton from tilting when outputting from the folding part, ensuring neat stacking and adjustable tuyere direction.

External sticking type, portable hole type and vent type cardboard can also be glued to the box to pass paper: it will not be stuck, and it will be counted and sent out smoothly and smoothly.

· Add the paper press fan.

Technical Parameter
