YD High-Speed Water-Based Printing Slotting Die-Cutting Stacker

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features
The whole machine adopts international design concepts,has passed European CE certification,and is manufactured in accordance with European and American standards,with Taiwan's own many years of production experience and design and manufacture. The transmission gear is imported,the transmission gear is hardened and ground,and the Rockwell hardness is >60 degrees. The self-locking structure is adopted for the gap adjustment of conveying roller,embossing roller,rubber roller and anilox roller. Independent computer control,can store commonly used orders,change orders quickly,easy to operate.Automatic return to zero,automatic reset.

Technical Parameter

Model	YD920	YD1224	YD1228	YD1426	YD1628	YD1632	YD2236	YD2242	YD2636
Mechanical high speed(sheets/min)	300	250	230	200	180	180	140	130	100
Large feed size(mm)	900x2000	1200x2400	1200x2800	1400x2600	1600x2800	1600x3200	2200×3600	2200x4200	2600×3600
Small feed size (mm)	260x600	320x600	320x600	420x600	450x600	450x600	500×700	500×700	500x700
Sheet feed size (mm)	1200x2000	1500×2400	1500x2800	1700×2600	1900x2800	1900x3200	2500×3600	2500x4200	2800x3600
Large printing area(mm)	900×1960	1200x2360	1200x2760	1400x2560	1600x2760	1600x3160	2200×3560	2200x4160	2500x3560
Small slotting interval(reverse knife) (mm)	240x65×240x65	260x65×260x65	260x65×260x65	260x65×260x65	260x65×260x65	260x65×260x65	360x95×360x95	360x95x360x95	360x95×360x95
Small slottinginterval(straight knife) (mm)	130x130x130x130	130x130x130x130	130x130x130x130	130x130x130x130	130x130x130x130	130x130x130x130	50x150x150x150	150x150x150x150	150x150x150x150
Large slotting depth (mm)	250	300	300	350	400	400	700	700	700

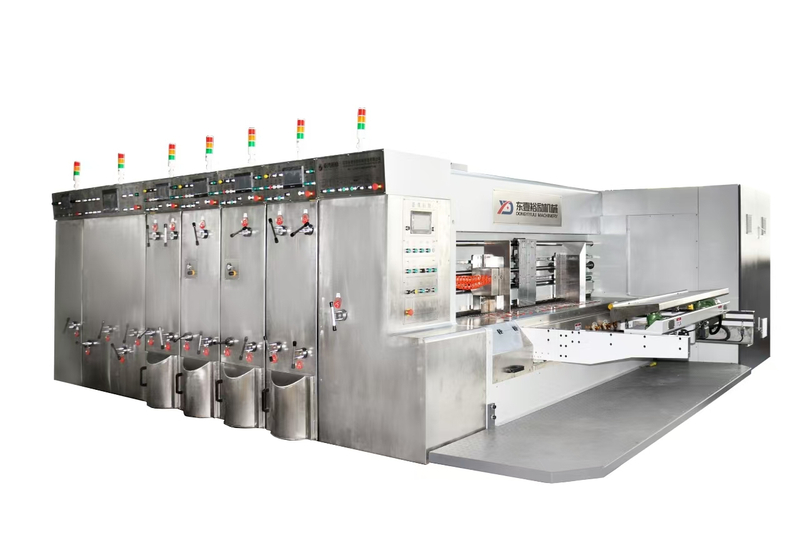

YD high-speed water-based printing slotting die-cutting stacker

Paper feeding unit

1.Paper can be fed continuously or spaced (with counter).
2.The leading edge paper feed increases the suction flow,making the paper feed more stable and accurate.
3.Dust removal device:brushes and fans can remove paper scraps from the sur- face of cardboard.
4.Self-locking structure is used to adjust the gap of the paper drawing roller.

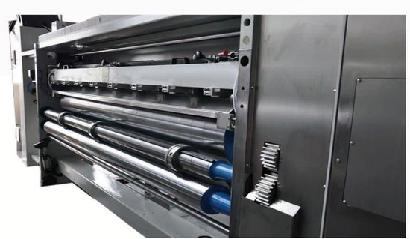

Printing unit

1.Scroll hanging plate,ratchet locking device,make hanging plate alignment more accurate.
2.Roll-to-roll transfer printing.
3.Automatic switching of the cleaning device allows formore thorough ink recove- ry.
4.The self-locking structure is adopted for the gap adjustment of conveying roller, embossing roller,rubber roller and anilox roller.
5.Optional single scraper inking system to improve printing quality,simple and convenient operation(optional).

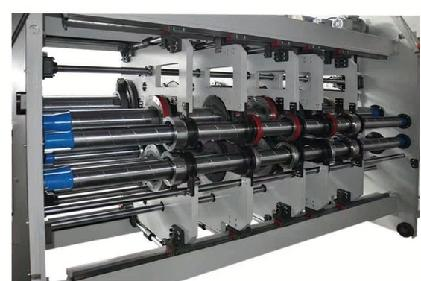

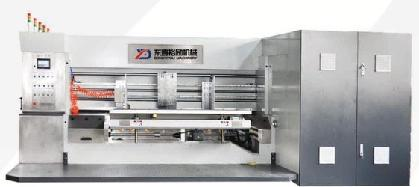

Slotted unit

1.Single-axis double-knife slotting,box height adjustment adopts inner tooth structure, so that lubricating oil is not easy to contaminate the carton.
2.Slotted cutter holder transverse structure,screw with linearguide rail,making the movement more flexible and accurate.
3.The upper tool seat and the lower tool seat are linked by a transmission shaft to keep the upper and lower knives aligned when moving,prolonging the tool life.
4.Self-locking structure is used to adjust the gap,pre-pressing and indentation gap of slotted cutter holder.
5.The height of the slotted cutter box is adjusted with an anti-collision protection device,which will not damage the machine.

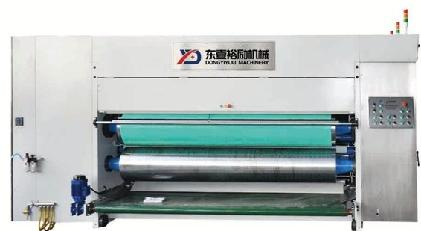

Die-cutting unit

1.Pad roller mechanical spiral commutation 50mm swimming lateral structure.
2.The gap between the rubber pad roller and the die rolleris electrically ad- justed.
3.Transfer roller adjustment adopts self-locking structure.
4.The pad roller compensation is driven by an independent motor to control the speed of the pad roller,and the compensation range is±3mm.
5.The pad roller cuts and smooths the structure to keep the surface of the pad roller flat.
